Material-Details: Stainless steel 1.4404 Datasheet



Stainless steel 1.4404 is moulded in the DLM. This means that the component is clean, free of voids or inclusions and 99.8% solid.
The properties of this material can be compared with those of aluminium component.
Parts that are made in this procedure are often more expensive than milled components. However, new possibilities completely emerge through the tool-less production.
Individual pieces and medically useful implants after a previous 3D scanning are thus possible.
Some of the Airbus planes and rockets of the NASA are flying already with serial manufactured 3D printed parts made of 1.2709 or 1.4404.


Advantages & disadvantages

Advantages
  • Stabilityas aluminium material
  • Extremely abrasion resistant
  • Detailed and extremely clean in print
  • Very good permanent availability
  • Stainless steel
  • Freedom of form
  • Air and water pressure sealing
  • Temperature resistant
  • Design freedom by supporters free printing
Disadvantages
  • relatively expensive

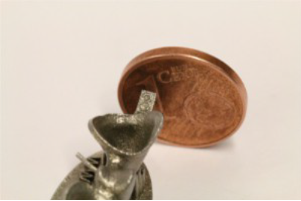

Material Example

Component in metal 3D printing
Component in metal 3D printing

Price calculation

Unfortunately DLM parts can only be calculated manually.


Typical usage

1.4404 is most often used medically to bsw. To manufacture components for the operating room.
Gladly but mechanical parts are also produced due to rust freedom and high toughness of this material.

Technology

1.4404 is produced in the process of DLM. DLM means Direct Laser Melting and referred the direct melt metal powder to form a component.
There will be no further processing steps unless requires the separation of the print.
The material is subjected to resolve tensions after printing a heat treatment.

The procedure:

Your model is broken down into layers on the computer and sent to the machine.
.Now, a printing bed with exactly this thickness is filled with metal powder. A very strong laser now merges the powder at the locations where your part is to be built.
This occurs under a protected atmosphere of argon or nitrogen.
This process is repeated until your component is manufactured.
The remaining powder is sucked off and cut your part of manuel from the base plate.
As a Finish your part in a heat treatment furnace to anneal it.

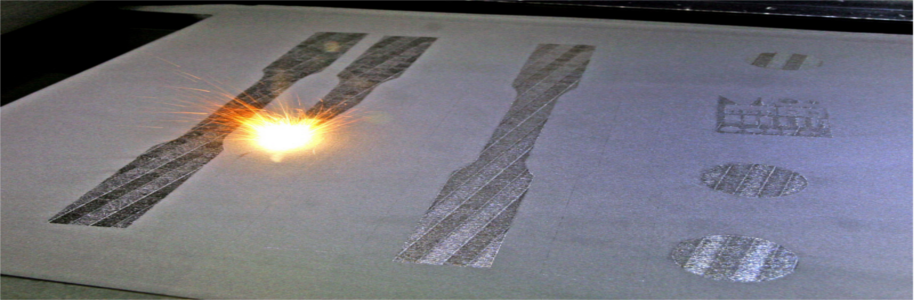

DLM 3D printing technology clarification, methods


Additionnal information

  • On request can be "printed" on existing metal parts. Thus: fixed extensions are possible.
    The prerequisite is a level ground surface.

Shipping costs
6-7 Working days


Design specifications:

Tolerance
± 0,05 mm

Minimum wall thickness
0,25 mm

Smallest Detail
0,25 mm

Maximum dimension
250 x 250 x 310 mm


Priority service

There is unfortunately no Priorityservice for stainless steel.

Price
---




The surface of your model is determined by the technology and the chosen material. Therefore, we offer several post-processing steps. This affects the cost but also the quality of your model.


Painted models

Painted 3D printing



Of course, you can also paint models from Stainless steel 3D.
Here, the quality and RAL color can be chosen. The basic version of the painting is a simple "Spray Paint"
This means that your part is lightly sanded and then painted. Construction stages and the similar are still easily recognizable.
The highest quality is the quality in premium (enamel). This "polishing" must be booked with.
Your part is sanded, polished, filled, wet sanded and painted.

  • Need a minimum of 10 x 10 x 10 mm
  • Price: 30% of the part price for base coating. Polishing service additional for premium book.
  • In Paint 2 working days must be separately taken into account.





Coating



Coating of 3D printing



Stainless steel parts can be also wonderful coat.
For this purpose, your model is ground and then coated with your desired material. Here also a coating with as gold or silver is possible.

  • We can coat only parts of 10 x 10 x 10 mm to 600 x 600 x 600 mm. Larger parts on demand.
  • Handling fee 12 € / order
  • Hand galvanizing.
  • Order thickness from 1 µm
  • Possible coatings.

    Copper 99,99% Cu IMDS Nr.  736943
    Matt nickel, from Sulfamatelektrolyt 99,95% Ni IMDS Nr.  748706
    High-gloss nickel >99,50% Ni IMDS Nr.  749088
    Gold plating 24ct. 24 Karrat Au IMDS Nr.  756617
    Silver plating 99,99% Ag IMDS Nr.  757803
    Chrome plating from the trivalent electrolyte, RoHS Compliant IMDS Nr.  756617
    Black chrome plating electrically conductive, Black Chrome coating IMDS Nr.  10629626/1
    Electroless Nickel Plating hochphosphorig, 13% Phosphor as NiP IMDS Nr.  326271538
    Tin plating 99.98% Sn, RoHS-Konform
    Bismut our Bismudan electrolyte, 99,95% Bi
Unit Value
Tolerance 0,25 mm

Other characteristics as in 1.2709 tool steel
