Material-Details: Sandstone Datasheet

Sandstone is One of our special material.
As the only professional 3D printing service worldwide, we have the pressure in this special material in the FDM process.
Sandstone is a great material for example. Architectural models should have a "stone" surface, but still have to be stable.
Sandstone has the advantage to remain despite the plaster share flexible and resilient over plaster, composite, or full color.
This is achieved from the combination of gypsum powder and nylon material.

Advantages & disadvantages

Advantages

Color and surface are reminiscent of sandstone (Rough)
Construction layers are almost impossible to detect.
Very good haptic feel.
Remains resilient and flexible
Almost free "warping" (from distortion)

Disadvantages

Low resolution by FDM pressure
No technical data available
Not abrasion resistant (mechanical stress)
Water taking on

Material examples

Bust of sandstone in the 3D printing FDM process

honed figure of sandstone in the 3D printing FDM process

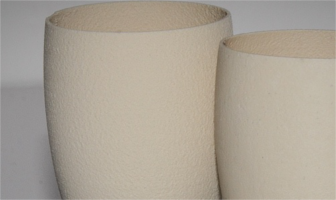

Cups made of Sandtsone in the 3D printing FDM procedure

Price calculation

1,00 € / cm³ used material at 0,2 mm Layer (Standart).
2,00 € /cm³ used material at 0,1 mm layer thickness.
It's just the Material calculated that is actually consumed in the component.

Typical usage

Sandstone is used whenever a component should have a sand-like interface and feel.
It is particularly popular for making architectural models.
Sandstone can be very well grind up and prints almost without visible stage of construction.

Technology

Sandstone is produced in the so-called FDM procedure.
FDM is spelled out "Fused deposition modeling".
FDM is one of the simpler procedures of 3D printing.Machined components are
visible layers (coatings) up. The advantage of this technology is the pressure in a
high variation of materials and the direct use of technical
Plastics. The material is genuinely applied and thus differs
to most other procedures, with materials with approximate work properties
. most other procedures, with materials with approximate properties.
FDM is not appropriate for small parts, because they overheat.

The procedure:
The model is broken down into layers of 0.1 0.2 mm.
Now, a plastic wire is pressed through a heating nozzle and a viscous
State puts. A CNC-controlled print head now moves from the contour of the component
and thereby contributes to the desired thickness.
Washable support structures of alcohol prevent hanging of overhangs.

Additionnal information

Sandstone ,as all FDM plastics are not approved for direct contact with food.
Components made of Sandstone can be very well painted and sanded.
Ambient humidity is sandstone.

Shipping within
8 Working days

Design specifications:

Minimum wall thickness
1 mm

Smallest Detail
0.3 mm

Maximum dimension
ø 170 mm x 285 mm

Priority service

When ordering before 12 at noon we ship within 2 working days. �

Price
30 % extra charge

The surface of your part is determined by the technology and the chosen material. Therefore, we offer several post-processing steps. This affects the cost but also the quality of a model.

The natural surface of the sandstone is perfect if you want your model just as functional or demonstration prototype. So you'll be able to see the material and method using the surface as we do nothing more than to print your part to remove the insulators and ship it to you.

Available colors:

White

Grinding and sandblasting (Polishing)

.Polished sandstone models have no high-gloss finish. You have a slightly rough but very smoothed surface.
All parts are sanded by hand and then sandblasted. For this reason, it may be that your part is subsequently rejected if it is not to edit by hand.

What is to be observed on polished models:

Models can only be polished from a minimum dimensions of 10x10x10 mm.
Only accessible by hand areas are polished.
Post processing will take on all surfaces around 0.2 mm materail. Plan something extra wall thickness.
Small details can disappear during this process.
The polishing service requires 2 extra Working days to the indicated delivery time.
Price: Polishing costs 30% of the part price as extra charge.

Painted models

Painted 3D printing

Of course, you can also paint 3D models from sandstone.
Here, the quality and RAL color can be selected. The basic version of the painting is a simple "spray paint"..
This means that is your part lightly sanded and then painted. Construction stages and the similar are still easily recognizable..
The highest quality is the quality in premium (car paint). This "Polishing" must be booked with. This "Polishing" must be booked with.
Your part is sanded, polished, filled, wet sanded and painted.

need a minimum dimension of 10 x 10 x 10 mm
Price: 30% of the part price for base coating. For additional premium polishing service (+30%).
In painting 2 Working days must be set extra(included).

	Unit	Value
Tensile strength	MPa	n/a
Elongation at break	%	n/a
Hardness	HR	n/a
Thermal resistance	�C	n/a
Impact resistance	kJ/m�	n/a
Density	g/cm�	n/a
Water absorption	%	n/a
Chemical resistance		n/a
Weather		n/a
